Uses

The TM372B is a completely self-contained portable sample counter, the TM372B has been the workforce for radon progeny (decay product) measurements in Canadian uranium mines for over 50 years. Designed for the efficient measurement of alpha radioactivity on filter media or planchettes, it uses a bare (no foil cover) ZnS(Ag) detector to ensure that detection efficiency is independent of alpha particle energy. The TM372B has also become the instrument of choice for counting Long Lived Radioactive Dust (LLRD) samples.



Principle of Operation

A pump (not included) is used to draw air through a filter, trapping radon on the filter. The filter is then inserted into the TM372B and the alpha radioactivity is counted. A technician uses a known formula to convert the number of counts to Working Levels (WL). The TM372B allows the device to count for any user defined time as well as display the time remaining while counting. For a more detailed description and for operating procedures, refer to the TM372B user's manual.



Method

A technician will typically walk through the workplace, taking one sample with their pump and counting the previous sample in the TM372, which they carry on a shoulder strap. Using this method, a skilled technician can take a sample every 6 minutes, which is about 3 times faster than automated instruments.



Quality Control

Another advantage the TM372 has over more complicated instruments is the traceability of the measurements and quality control. Radon progeny measurements are often taken to demonstrate regulatory compliance. It is therefore important that the reported values are traceable. The efficiency of the TM372B can be determined using a traceable source. The flow rate of the sampling pump can be measured on a primary standard, such as a bubble tube. The sampling time is measured with a stopwatch, which can be checked against other watches. The airborne radioactivity readings are then calculated using first principles and traceable input parameters.



Features and Specifications

Dimensions 21.6 cm (8 1/2") x 13.5 cm (5 3/8") x 18.5 cm (7 5/16")
Weight 2.2 kg (4.8 lbs)
Sample Holder Sizes 25 mm, 37 mm, and 47 mm
Display 5 Digit 7-segment LED
Display Range 0 to 167 x 105 counts
Count Time Range 1 second to 999 minutes and 59 seconds
Controls Membrane switch buttons
Power Supply Internal Li-Ion Battery. Approximately 35 hours operating time
Charger USB. 16 hour charge time
Detector ZnS screen with Photomultiplier tube (B38B01W)


Included

The TM372B includes the following:

• 3 - ZnS alpha detector spares

• 1 - USB battery charger

• 1 - 25 mm sample holder (two piece unit)

• 1 - 37 mm sample holder (two piece unit)

• 1 - 47 mm sample holder (two piece unit)

• 1 - Protective operational leather carrying case with shoulder strap

• 1 - User's manual



User's Manual

TM372B user's manual.

Warranty

The TM372B are guaranteed against defective materials and workmanship for a period of one year from the date of purchase. The warranty covers labour and part replacement costs but does not include the cost of shipment to EIC. Return shipments for repair are to be made only after having received approval by EIC. No warranty is made beyond repair, replacement, or refund of the purchase price. In no way shall EIC's liability be in excess of the purchase price of the product. EIC assumes no liability for loss, damage, or delay during delivery. Additional insurance on shipments is the responsibility of the purchaser. EIC will conduct repairs as quickly as possible according to the purchaser's needs, but is not responsible for delays or any losses incurred by the purchaser as a result of delays.



Pictures

The TM372B retains the functionality of the original TM372 but has a new membrane switch keypad and a larger and brighter LED display.

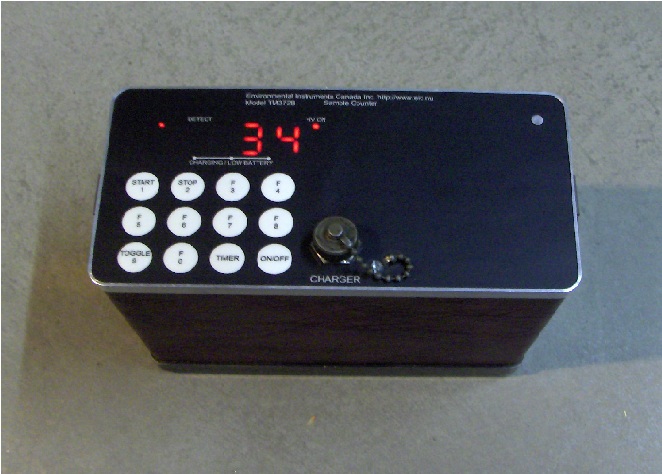

An LED indicator on the right of the display shows that the high voltage is on and an indicator to the left of the display shows that the unit is currently counting. Thirty four counts have been recorded since the count began.

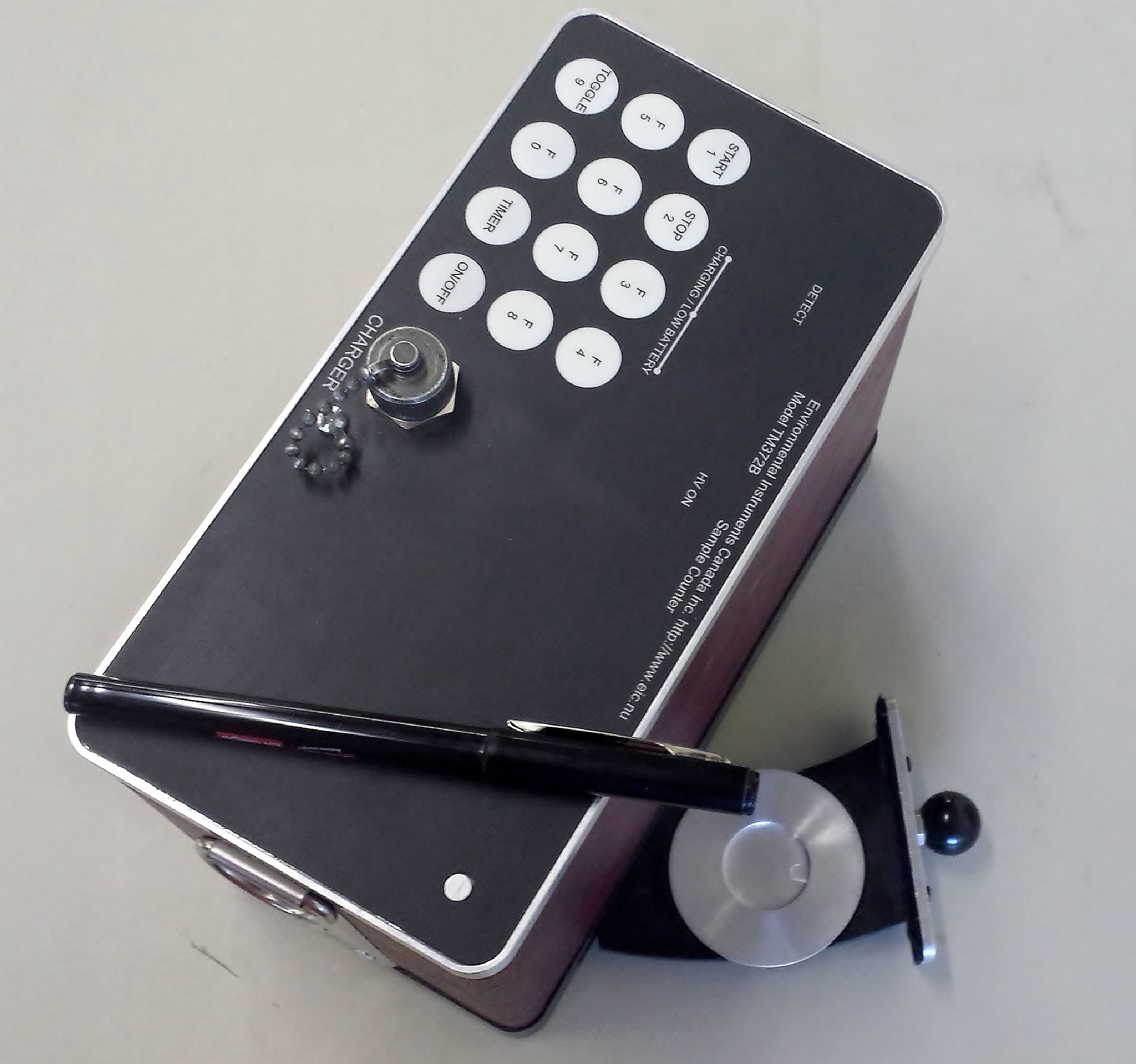

The sample tray is pulled out of the TM372B, ready to accept a sample for counting.

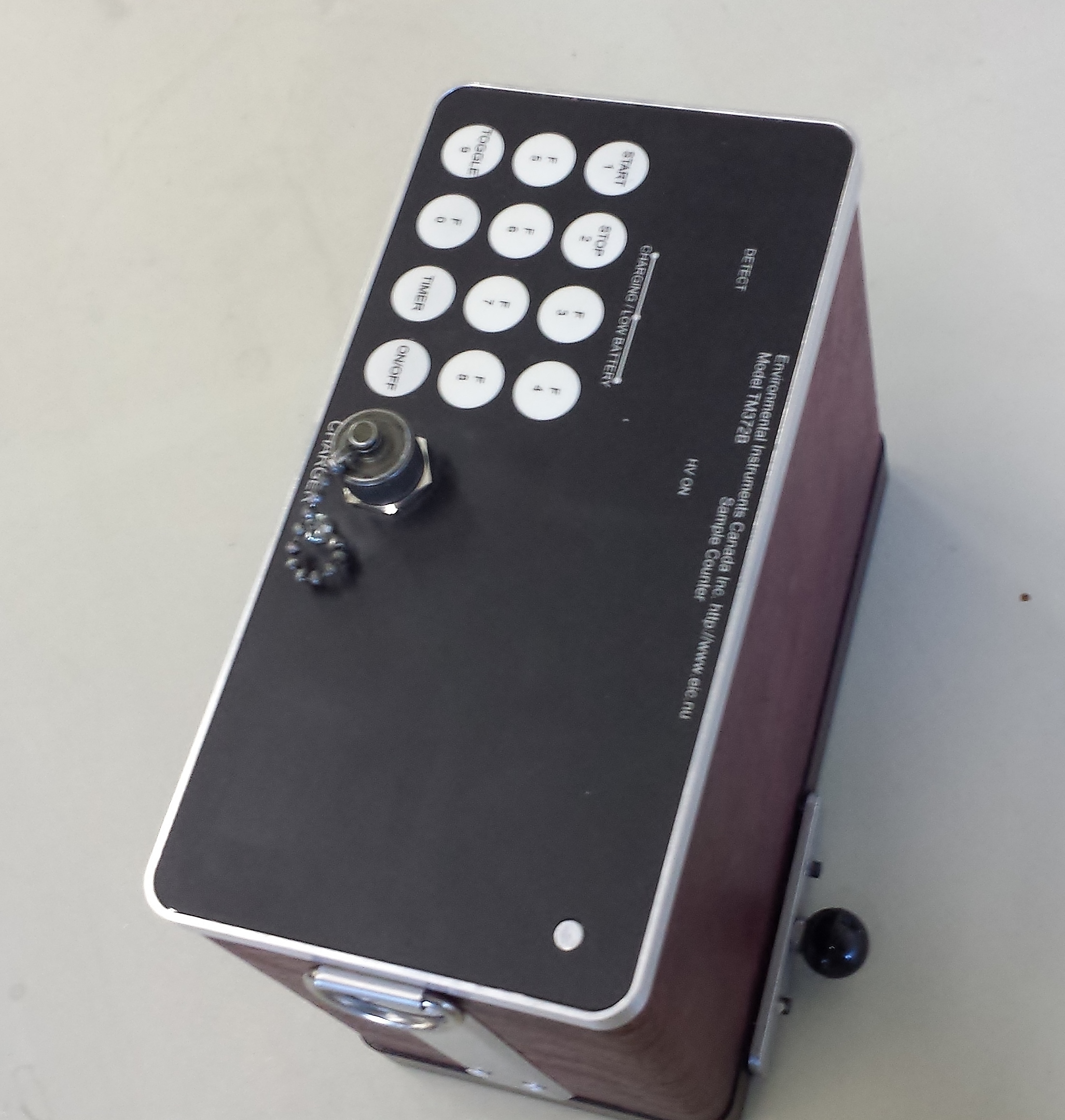

In this picture, the sample tray is retracted. The sample is now directly below the internal detector and ready for counting.

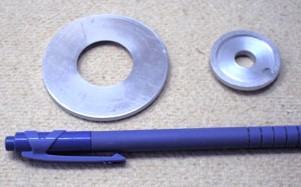

The sample holder (small disc shown) sits inside the sample tray. The sample, usually a filter paper, is placed into the holder. The retaining ring is placed over the sample and holder, holding the sample in place.

Once the sample tray is retracted, the entire sample holder assembly is held in place by the internal geometry of the TM372B. Sample holders for 25 mm, 37mm and 47 mm samples are included.


Video Demonstrations

In this video we introduce the TM372 Portable Counter. We identify the parts that are included with the TM372, along with other accessories needed for counting radon progeny that are not included with the TM372. We also show how to assemble the unit and make it ready for use.

In this video we demonstrate the operation of the TM372 Portable Counter. We show how to perform a background check and a source check. Lastly we show how to take a sample and count it using the Rolle Method.
